Getting started with XProc using Eclipse

This post looks at how to get started with Norm Walsh's XProc implementation - using Eclipse.

XProc is an XML Pipeline Language, which is being defined by the folks at the XML Processing Model Working Group. Norm has an experimental implementation, hosted at https://xproc.dev.java.net/. The release notes are here.

Naturally enough, this is as a Netbeans project - but I thought I'd give it a try using Eclipse. It was pretty easy in the end:

1. Start your favourite Eclipse version - I used 3.3
2. Add in a Subversion plugin (since dev.java.net uses subversion). I've been using Subclipse lately. See http://subclipse.tigris.org/ for more details.

3. Point your SVN explorer to the repository https://xproc.dev.java.net/svn/xproc

4. Check out as a new Java Project using the Wizard.

5. Download (some of) the required frameworks ... I found that I could get by with Saxon 6.5 and Saxon 9 to get started. Add these .jars to the build path. Also note that you should add saxon9-s9api.jar as well as saxon9.jar.

6. Adjust the build path - so that these two directories are used as the java source:

   java/src
   java

   The second is required, since a number of configuration files are referenced using a path like /etc/configuration.xml and as such, they need to be findable on the classpath. Eclipse will make sure that you exclude java/src from this include. Your classpath should look something like this:



7. I used the xproc.Driver class to do a simple test. It was not long before I realized that things were not happy due to my running on a Windows box. I needed to change this line:

   hash.put(port, "file://" + fn);

   to this:

   hash.put(port, "file://" + "/" + fn);


8. I then needed to use this sort of command line arguments:

   -i source=c:\fred.xml java/samples/count.xpl

This just runs the count pipeline against a simple xml document.

Simple.

Here's a screenshot of the project contents:




Note that some errors are shown (since not all required libraries are provided), and that all three of the saxon libs are required.

And for good measure, here's a screen shot of a successful run:

Declarative Eclipse Branding with SVG

Recently, I had need to add some Eclipse branding graphics to an RCP application.

Rather than take the "easy" route of using an image editor, I thought I'd explore the use of SVG to produce the required images in a declarative kind of way.

Using SVG for this purpose has a number of advantages ...

• they are cross platform
• the declarative, text file nature allows the content to be generated
• they can be created using open-source tools

The downside is that the bitmaps required for Eclipse branding must be in BMP format - not the newer PNG alternative. This is covered in detail in this Eclipse bug report - https://bugs.eclipse.org/bugs/show_bug.cgi?id=21315.

Fortunately, this can be overcome by converting the SVG images to a bitmap format by using a conversion program called a "rasterizer".

A good example of a rasterizer is Batik - an open-source toolkit for manipulating SVG images.
See http://xmlgraphics.apache.org/batik/tools/rasterizer.html for further details on the Batik rasterizer.

Round Trip example

Here's a simple example of some SVG source to get started.

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<svg
xmlns:svg="http://www.w3.org/2000/svg"
xmlns="http://www.w3.org/2000/svg"
xmlns:xlink="http://www.w3.org/1999/xlink"
width="500"
height="330"
id="drawing">

<defs>
<g id="mytext">
<text
xml:space="preserve"
style="font-size:40px;font-weight:normal;text-align:start;line-height:100%;text-anchor:start;font-family:Bitstream Vera Sans"
x="200" y="125">Hello</text>
<text
xml:space="preserve"
style="font-size:40px;font-weight:normal;text-align:start;line-height:100%;text-anchor:start;font-family:Bitstream Vera Sans"
x="200" y="170">World ...</text>
</g>
</defs>

<rect style="fill:black" width="500" height="330" x="0" y="0" />
<use xlink:href="#mytext" style="fill:white" />

</svg>

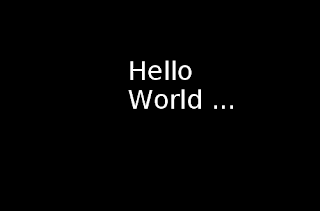

This produces a result like this:


In order to produce this image for the web, I used the Batik rasterizer. For example, the command I used was this:

C:\>java -jar c:\jshare\batik-1.7\batik-rasterizer.jar drawing5.svg
About to transcode 1 SVG file(s)

Converting drawing5.svg to drawing5.png ... ... success

Once you have a PNG format image, it's a "simple" matter of converting that to a BMP format. The simplicity involved depends on your platform:

• if you're on Windows - you can use Microsoft Paint: open the PNG and then save as BMP
• if you're on Linux - you can use GIMP

Refining your Image

Well, that's produced a very simple image. But one of the advantages of SVG is that you can get very nice effects with a minimum of effort.

Step 1 - Background Gradient

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<svg
xmlns:svg="http://www.w3.org/2000/svg"
xmlns="http://www.w3.org/2000/svg"
xmlns:xlink="http://www.w3.org/1999/xlink"
width="500"
height="330"
id="drawing">

<defs>
<g id="mytext">
<text
xml:space="preserve"
style="font-size:40px;font-weight:normal;text-align:start;line-height:100%;text-anchor:start;font-family:Bitstream Vera Sans"
x="200" y="125">Hello</text>
<text
xml:space="preserve"
style="font-size:40px;font-weight:normal;text-align:start;line-height:100%;text-anchor:start;font-family:Bitstream Vera Sans"
x="200" y="170">World ...</text>
</g>

<linearGradient id="top">
<stop offset="0%" style="stop-color: black;"/>
<stop offset="100%" style="stop-color: #484848;"/>
</linearGradient>

</defs>

<rect style="fill:url(#top)" width="500" height="330" x="0" y="0" />

<use xlink:href="#mytext" style="fill:white" />

</svg>

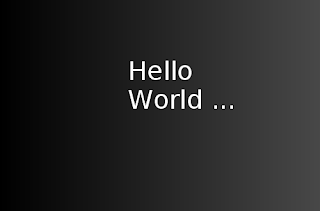

This produces a result like this:



Nice enough, but the default direction for a gradient is from left to right.

Step 2 - Background Gradient - in the correct direction

Here, we use another gradient - with a direction specifier - and embed the first.

<linearGradient id="top">
<stop offset="0%" style="stop-color: black;"/>
<stop offset="100%" style="stop-color: #484848;"/>
</linearGradient>

<linearGradient id="topa"
xlink:href="#top"
x1="0%" y1="0%" x2="0%" y2="100%"/>

</defs>

<rect style="fill:url(#topa)" width="500" height="330" x="0" y="0" />

This produces a result like this:



Step 3 - Background Gradient - with a horizon effect

This refinement adds a horizon - by splitting the image in two - at 200 px down, and using two gradients.

<linearGradient id="top">
<stop offset="0%" style="stop-color: black;"/>
<stop offset="100%" style="stop-color: #484848;"/>
</linearGradient>

<linearGradient id="topa"
xlink:href="#top"
x1="0%" y1="0%" x2="0%" y2="100%"/>

<linearGradient id="bottom">
<stop offset="0%" style="stop-color: #707070;"/>
<stop offset="100%" style="stop-color: black;"/>
</linearGradient>

<linearGradient id="bottoma"
xlink:href="#bottom"
x1="0%" y1="0%" x2="0%" y2="100%"/>

</defs>

<rect style="fill:url(#topa)" width="500" height="200" x="0" y="0" />
<rect style="fill:url(#bottoma)" width="500" height="130" x="0" y="200" />

This produces a result like this:



Step 4 - With a Graphic

Naturally, if we are doing a nice, modern style image, we should use some modern styled clip-art to give the image a lift. Since we are using SVG, there is a whole world of choice at the Open Clip Art project. For my Hello World example, I've chosen a nice clean globe.

In order to use a graphic, download the source to separate file. It can then be included in two different ways:

1. cut and paste the source code into your SVG file
2. save it to a separate file, and reference it as below using the image tag.

Note that I have applied a scale transformation to make the image fit in.

<g id="globe">
<image xlink:href="globe.svg"
width="500" height="500" x="0" y="0"
transform="scale(0.25)"/>
</g>

</defs>

<rect style="fill:url(#topa)" width="500" height="200" x="0" y="0" />
<rect style="fill:url(#bottoma)" width="500" height="130" x="0" y="200" />

<use xlink:href="#mytext" style="fill:white" />
<use xlink:href="#globe" x="60" y="80" />

This produces a result like this:



Step 5 - With a Reflection

No self-respecting modern image would be complete without the "reflection" technique! This is amazingly simple using SVG - just apply a transform effect on the use tag.

<use xlink:href="#mytext" style="fill:white" />
<use xlink:href="#mytext" style="fill:white;opacity:0.25" transform="matrix(1 0 0 -1 0 400)"/>

<use xlink:href="#globe" x="60" y="80" />
<use xlink:href="#globe" style="opacity:0.25" x="60" y="80" transform="matrix(1 0 0 -1 0 400)"/>

This produces a result like this:

Photoshop Elements - Explorer

As a way of investigating the internals of the Adobe Photoshop Elements (PSE) meta tags, I thought I'd whip up a little Eclipse plug-in to do some experimentation.

The primary purpose was to provide a means of exporting my metadata. I do a little editing within PSE, but my largest investment is in the metadata attached to (almost) every photo.

I realize that you can (and should) backup your PSE catalog using the supplied tools, but this approach also provides a degree of independence should I ever wish to decamp to another product.

Plug-in Structure

The following diagram shows the plug-in dependency hierarchy. The diagram was produced using the brilliant Plug-in Dependency Visualization Tool from Ian Bull, also described here on his blog.



As can be seen from the hierarchy, I make use of a number of libraries, packaged as plug-ins.

• XOM - to provide XML support. See here for more details on XOM.
• SQLite JDBC driver. See here for more details.


I had a few choices about how I was going to deploy it - workbench, RCP or even scriptable via Eclipse Monkey ... but I thought the workbench plug-in would be the simplest thing to get started.

Workbench Integration

Since I was aiming for the workbench, it made sense to provide some integration with the functionality you get for free! The two most obvious points are:

• workbench properties
• an image viewer


It's very easy to integrate with the workbench Properties View. This is very well documented - in particular in this article.

I have also encountered a great image viewer, courtesy of Wayne Beaton - see here for more details.

The great thing about making use of these functions is that they simply require an adapter to the required class to exploit the functionality.

• the Properties View needs an adapter to an IPropertySource implementation
• the Image View plug-in requires an adapter to an ImageProvider implementation.

To keep things simple, I initially coded up the getAdapter code directly into the model - but, with a teeny bit of thought - and prompting from Wayne's latest "adapters" articles here - it made sense to extract them into an AdapterFactory. And after doing this, it made sense to extract the whole model to it's own plug-in.

Plug-in Functionality

It's pretty basic - a simple PSE Explorer View, which lists the contents of the catalog, and two menu options:

• one to load an existing PSE catalog file (SQLite database)
• one to export the loaded PSE catalog as an XML Document.

The following screen shot shows the plug-in in action - with the PSE Explorer view on the top half of the screen, and the properties and Image View on the bottom.



The plug-in functionality is initiated by the two command handlers (corresponding to the menu items) - that is, import and export.

The import function is facilitated by a simple DataProvider class. This provides the means of accessing the SQLite database and populating the model used by the viewer. The SQL used is similar to my earlier experiments.

The export function merely provides an XML transformer for the populated model. The results of the export looks like this:



Summary

This is just a starting point, but it has provided a easy way for exploring the PSE metadata. With a bit more polish, I'll see if I can release some of the code.

Photoshop Elements - User Interface

In my recent experimentation with Photoshop Elements 6 (PSE6), I was quite surprised by some of the user interface (UI) techniques employed.

For example, with the "Albums" and "Keyword Tags" palettes, there is a "New" button, as shown below - the bright green cross -



When you hover, the tooltip text shows as below:


But what if you wanted to collapse or expand the tree? There doesn't seem to be any actions available for that. Let's click the "New" button - which is a pull-down, and see what happens ...



Aaahhh. There they are. At the bottom of the "New" menu.

what the?

It seems that it's basically overloading that first tool bar button. I'm not sure why. For fear of cluttering up the tool bar perhaps.

An alternative would be to make the buttons explicit - perhaps like the Eclipse style ones shown here (as the boxed "-" and "+"):



A little more thought needs to go into style guides for these interfaces I think.

Photoshop Elements - Smart Albums

My investigations are continuing with Adobe Photoshop Elements 6 (PSE6). And this post looks at the new feature called Smart Albums.

They are based on the same concept as the Smart Playlist in iTunes. That is, they are defined searches - rather than specific, static items - so that the Album contents always stays current.

It is a good feature to include, and in general seems well done. But, I've encountered a few usability issues which seem important.

1. User Interface to Modify a Smart Album

This seems strange. The problem is that there are two different "edit" operations - the most obvious seems to be to select the Smart Album, and then the Edit toolbar icon. In this case, I've selected the album called "Smart Taxis".



Indeed, the hover text indicates "Edit Smart Taxis Album". When you select this action, you get a dialog which only allows you to change the name! It conveniently tells you about the criteria though.


To modify the search criteria, you instead need to follow this process:

1. Active the smart album, by selecting it from the Album palette
2. From the organizer, select the Options pulldown
3. Then select "Modify Search Details"
4. You then, finally, see the dialog - which is entitled "Find by Details (Metadata)"

5. You then still need to make the changes you need, and if you want to change that same album, select the check box and type your original name, and press "Search" ??


6. A helpful dialog then tells you that this album exists, and would you like to replace it.


OMG! In doing this post, I've just realized that it doesn't replace your album - PSE6 adds another album - with the same name.

To be slightly fair, the dialog text doesn't actually say it's going to replace that album - it says "Click OK to create a Smart Album with this name anyway". I guess it could be seen as helping to provide some form of version control. But still, it doesn't seem terribly obvious.

What's going on here?

It seems that there is a basic disconnect between the two halves of the screen - the Organizer on the left - with the find bar showing Search Criteria - and the Album palette on the right - which talks in Albums.

2. Smart Album search criteria

Unfortunately, some of the search criteria available seems a little restrictive - that is, a bit lacking in flexibility. Some examples may help to illustrate:

1. Can't use "not Include" with the "Keyword Tags" search - only Include:




2. Can't use Smart Albums as the argument with the "Albums" search. The only albums presented in the list are standard (static) Albums.



   This would allow for a tree structured, or nested style search. This is also something which iTunes seems to manage ok.


I'm sure there are others, but these are the ones which seem to leap out.

Conclusion

Smart Albums is a good start - but it would nice to see them just a little bit smarter ... and easier to use.

Exploring the PSE6 Database

Curiosity has got the better of me, and I needed to see a little bit more of the Photoshop Elements 6 (PSE6) database.

You can use standard SQL to poke around, but for simple things I found a great tool in SQLite Expert Personal. It's a simple database exploration tool. The main screen looks like this:




Naturally, I also needed to try some SQL too. This query retrieves the Star rating (from 0 to 5) for all images:

select media.id as recid, media.full_filepath
, mdint.value as rating
from media_table as media
join media_to_metadata_table as mm on media.id = mm.media_id
join metadata_integer_table as mdint on mm.metadata_id = mdint.id
join metadata_description_table as mdesc on mdint.description_id = mdesc.id
where mdesc.identifier = "xmp:Rating"
and mime_type = "image/jpeg"

Another test query is to retrieve the user tags for an image:

select media.id as recid, tt.name
from media_table as media
join tag_to_media_table as t2m on media.id = t2m.media_id
join tag_table as tt on t2m.tag_id = tt.id
where media.id = 276
and type_name like 'user%'

I think that I'll put these to further use soon.

Eclipse Commands

The new command framework for Eclipse looks quite good. But I found it a little hard to get started with it.

I've found some really useful info here though:

• http://richclientplatform.blogspot.com/2007/07/new-menu-contribution-extension.html
• http://wiki.eclipse.org/Platform_Command_Framework#Commands


One problem I've encountered though, is how to determine the command Id for an existing workbench function. In this case, I wanted the "Help -> About" function to be present in my RCP app.

I stumbled across a simple solution - cheat! That is, use the Cheat Sheets wizard to give a helping hand. (Thanks to Chris Aniszczyk for his informative article on Cheat Sheets - reading it gave me the inspiration for this!)

1. Create a new cheat sheet, by selecting File -> New ... and then selecting "Cheat Sheet".
2. Just use any name, and specify a "Simple" cheat sheet.
3. Once in the editor, select the "Item" - and on the right hand side of the form, you will be able to specify a command - using the gift of Browse.


4. Click on the Browse button, and you'll be presented with a list of common workbench commands. For example:


5. You can then select the Command, and even press "Execute" to try it.

I've found this a handy trick.

Photoshop Elements

Well, I finally took the plunge - and upgraded my Photoshop Elements 3.0 (and Photoshop Album) to the new Photoshop Elements 6.0 (PSE6).

A few things caused the change:

• the old version was starting to creak a little bit
• lots of annoying little bits -like no alternative date format
• the ability to use star ratings

• the shiny new interface looked cool!

The upgrade went really well. As other people have noticed - you need to then manually go and convert your old catalogs using the "Catalog Manager" (File -> Catalogs ...).

One disappointment is that there (still) does not seem to be an adequate interface to Flickr. What is with the whole Adobe Partner Services thing? As such, in the past I've whipped up some Java to scan my PSE catalog (stored in an Access/Jet style) database, and reconcile that against my Flickr account - using the flickrj project as the framework.

One pleasant surprise is that the framework used to store the database has been updated. It now uses something called SQLite. This looks really interesting, as it is a well featured SQL database, which stores it's entire contents in a single file. (Apparently, Lightroom also uses SQLite, but I think a different schema.)

Naturally, I needed to check out the schema. Two ways spring to mind:

1. Native access - via the SQLite facilities
2. JDBC access.

A few little notes on each follow below.

Native SQLite Access

1. download the executable from here. This gives you a zip. Simply extract the contents - a single .exe to a location of your choice.
2. locate your PSE catalog location - an easy way is to use the Help -> System Info ... menu option.
3. use the command sqlite3 filename

This gives you a simple command line interface. The commands are all "." prefixed - for example, use ".help" to get started.

JDBC

There is a JDBC interface available. I decided to try the one available here. It was a simple matter of:

1. create an Eclipse project (or IDE of choice)
2. add the jar file to the class path
3. use the sample code to start exploring


It does seem very straightforward. I'll post some code, etc after a bit more digging.
